Faza 3 Point Hitch Hay Rake

Faza 3 Point Hitch Hay Rake

Faza 3 Point Hitch Hay Rake
Click to enlarge image(s)

• Faza rakes are built of heavy solid steel tubing.
• Forged steel spoke hubs and conical roller bearings.
• Rakes take up minimal room in transport mode.
• Ultimate in reliability and performance.
• Rake wheels feature tines with a larger gauge than the competition for longer life, while retaining maximum flexibility.

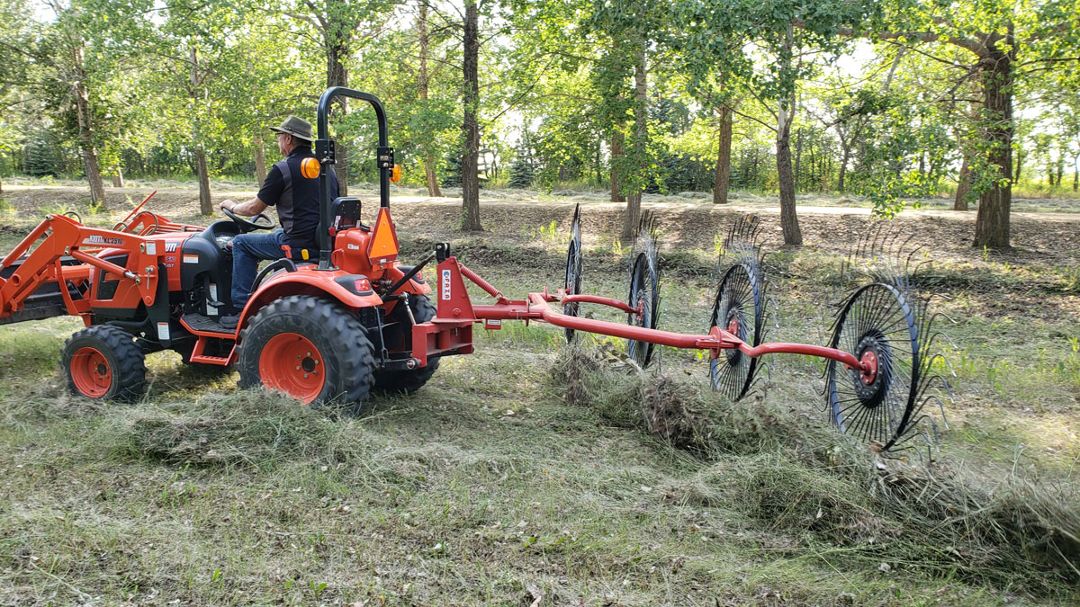

This rake will roll your cut crop into windrows for the baler to pick up and bale. Precise raking action produces fluffy, uniform windrows that dry evenly. It can also turn over swaths for drying purposes if needed.

Specs .
Tractor HP 25+ (3ph must lift high enough to raise rake off the ground)
Drive Ground Driven
3 Point Hitch Cat. 1
Weight 407 lbs.
Working Width 8'6"
Working Speed 14mph
No. of teeth 40 (9/32 dia.)
Wheel Diameter 55"
Adjustment Travel position, Angle adjustment on J-arms
For any questions about this or any of our other products please
email or call 306-239-2262.
