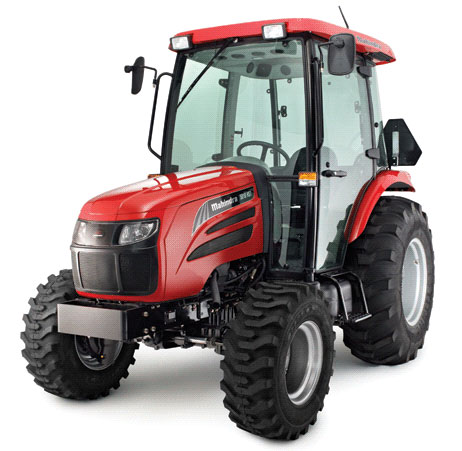

Mahindra 2555 Cab - 55hp 4wd

Mahindra 2555 Cab - 55hp 4wd

Mahindra 2555 Cab - 55hp 4wd
Click to enlarge image(s)

  • 7 Year Powertrain Warranty
    mCRD Engine - No DPF and fuel additive required!
    Shuttle or HST Transmissions
    Economical and easy to operate tractor with loads of standard features.
    Designed for:

    • Lawn and Ground Maintenance
    • Landscaping
    • Farm and Horse Ranch
    • Construction and Maintenance
    • Materials Handling
More 2555
Specifications
ENGINE
Compression Ratio 17.2:1
Cylinders 3
Displacement cubic inch (cc) 161.5 (2648)
Engine HP (kW) @ rpm 55 (41) @ 2300
Type - mCRD Four stroke, direct injection, turbo-charged and intercooled, mCRD diesel
ELECTRICAL
Alternator 12 volt, 90 amps
Battery Capacity 12 volt, 96 amp hours
CLUTCH - Gear Transmission
Type Single plate, dry
TRANSMISSION
Type - Shuttle / HST Syncro-shuttle w/part synchromesh / HST-3 range
Number of Speeds 12 forward, 12 reverse / HST-Infinite
FRONT WHEEL DRIVE
Type Mechanical
STEERING
Pump Output (gallons per minute) 5
Type Hydrostatic / Tiltable
BRAKES
Type Wet disc
HYDRAULIC SYSTEM
3-Point Linkage Category 1, with telescopic check chains
Lift Capacity (@ 24") 3,314 lbs. (N/A)
Pump Output (gallons per minute) 9.5
Rear Auxiliary Remote Valves Single spool with optional 2nd and 3rd spool
Type Open center, full-live hydraulic with position & draft controls
PTO
MID PTO RPM (engine rpm) N/A
PTO HP (kW) - Shuttle / HST 44.5 (31) / 42.4 (31.6)
PTO RPM (engine rpm) 2,300
Type Independent PTO with safety mechanism and electro-hydraulic clutch
OPERATING WEIGHT (total) 4,056
DIMENSIONS WITH INDUSTRIAL TIRES
Overall Length Inches 134.1"
Overall Width Inches 71.1"
Turning Radius Min. Feet 11'
TIRE SIZES
Industrial (Front / Rear) 12x16.5 / 16.9x24
LOADER SPECS - 2555L
Bucket capacity 11.2 cu.ft.
Bucket width 72"
Lift Capacity to Full Height @ Pivot Pins 3,122lbs.
Breakout Force @ Pivot Pins 5,225lbs.
Clearance with Attachment Dumped 82.3"
Maximum Lift Height 115"
Reach at Maximum Height 23"
Digging Depth Below Grade 5.2"
Cycle Times @ rpm 2,600
Dump Attachment (seconds) 4.9
Lower Boom (seconds) 4
Raise Boom (seconds) 6
Retract Attachment (seconds) 3.2
Rollback Angle 39°
Maximum Dump Angle 69°
Rated Flow (Tractor System) 9.5 gpm
Shipping Weight 1,270 lbs.
Features Benefits
7 Year Limited Warranty Best in the industry!
mCRD Engine - NO DPF and fuel additive required No high heat regeneration required, simpler with no operator involvement.
Auxiliary remote valve Great versatility for running implements that need hydraulics to be operated.
Industrial Tires The preferred all around tire. Less damaging to lawns as ag tires but better traction than turf.
Clear view, multifunctional instrument panel Full gauges lets you know how your tractor is running. No dummie lights.
Comfortable suspension seat with cloth lining, with weight adjustment Reduces fatigue and soreness in extended operation.
Drawbar Useful for towing
Easy hook for top link retention Storage position for top link when not in use.
Electrical power socket at tractor rear for external connections 12V power outlet.
Easy access PTO on/off switch Independent PTO with safety mechanism & electro-hydraulic clutch
Ergonomic controls and pedals for operator comfort Shifters at operators sides, not on the floor.
Front bumper / weight bracket Also used to mount grill guard.
Hitch lowering speed adjustment knob Increase or decrease the speed of 3 point hitch.
Spacious, full-flat operator platform with rubber mat Increased ease of mounting/dismounting and operation.
Tilt steering column Increases ease of operation.
Gear Transmission very smooth and easy to operate.
Handy toolbox in the operator platform
Sleek, powerful headlamps and stylish front grille & Rear work light Work around the clock with high powered lighting.
Hood opens completely for ease of access Side engine panels remove without tools for easy access.
Reinforced metal fenders More durable than plastic
Telescopic check chains for lower links Adjust lower links with ease.
LOADER
Bucket level indicator Sliding rod type
High strength steel Strong rugged loaders
Powder coated paint Better looking longer lasting paint
C-formed boom arms & enclosed knee area
Integrated loader mounts
Quick-attach series loader parking system
Two spool, single lever, hydraulic valve with porting & integrated hydraulic hose connections power beyond, float & regeneration functions Also with skid-steer quick attach bucket.
