RX Series

With deluxe climate-controlled cab models and the heaviest lift capacity in its class, the RX Series delivers ultimate comfort and incredible power. So you can take on the most demanding jobs without even breaking a sweat.

Cylinders 4 cyl. CRDI Daedong
Displacement cubic inch (cc) 148.6 (2,435 cc)
Engine HP (kW) @ rpm 73 hp (54.4 kW)
Fuel Tank Capacity 25 gal. (95 L)
Forward MPH (KPH) 23.53 mph (37.86 km/h)
Reverse MPH (KPH) 23.13 mph (37.23 km/h)
Number of Speeds 12F / 12R
Type Synchro Shuttle
Type Mechanical
Type Hydrostatic power
Type Wet multi disc
Clutch Dry Single Plate
3-Point Linkage Category 2
Lift Capacity (@ 24") 3,898 lbs. (1,768 kg)
Pump Output (gallons per minute) 19.23 total
Rear Auxiliary Remote Valves 1/2/3 spool
PTO HP (kW) 63 hp (47 kW)
PTO RPM (engine rpm) 540
Type Independent
OPERATING WEIGHT (total) 6,162 lbs. (2,795 kg)
Overall Length Inches 146.3 in.
Overall Width Inches 77.2 in.
Ground Clearance 17.3 in.
Turning Radius Min. Feet 11.2 ft.
Ag (Front / Rear) 11.2-24 / 16.9-30
Bucket capacity 21.2 cu. ft.
Bucket width 82 in.
Lift Capacity to Full Height @ Pivot Pins 3,384 lbs. (1,535 kg)
Breakout Force @ Pivot Pins 5,359 lbs. (2,431 kg)
Clearance with Attachment Dumped 102.3 in.
Maximum Lift Height 133.9 in.
Reach at Maximum Height 20.4 in.
Digging Depth Below Grade 6.5"
Cycle Times @ rpm 2,300 rpm
Dump Attachment (seconds) 4.7 seconds
Lower Boom (seconds) 4.2 seconds
Raise Boom (seconds) 6.3 seconds
Retract Attachment (seconds) 3.5 seconds
Rollback Angle 54º
Maximum Dump Angle 47º
Rated Flow (Tractor System) 41.6 lpm
Shipping Weight 1,486 lbs. + Bucket 428 lbs.
Features Benefits
4 Year Powertrain Warranty Unlimited Hours! - Best in the industry!
More built in weight Some of the heaviest tractors in their class. More weight = more productivity
Versatility A wide range of available implements to handle any task
Premium Diesel Engine The Daedong CRDI turbo engine offers the power you need to complete your jobs
4wd 4WD is standard on the tractor and a single lever engages the 4WD
Hydrostatic Power Steering Power steering is standard and minimizes the effort required to make tight and repetitive turns even with a full loader bucket
Tires Ag or Industrial
Clear view, multifunctional instrument panel Full gauges lets you know how your tractor is running.

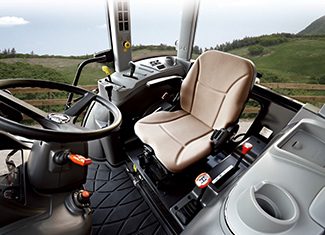

Interior Comfort The climate-controlled cab keeps the operator comfortable in all working environments. The ergonomic and fully adjustable suspension seat allows the operator to ride comfortably.
Enclosed down-swept exhaust muffler Keeps engine noise and exhaust fumes away from the operator.
Deluxe Cab The RX Series offers improved visibility and comfort with ergonomically placed controls and colored control levers to help minimize operator fatigue.
Ergonomic controls for ease of operation Each model is equipped with "push button" engaged 4WD and differential lock. The rear PTO is also easily engaged with the simple push of a button.
